“Arel Circuiti Stampati is a point of reference in the printed circuit board sector, thanks to the services offered and its long know-how”

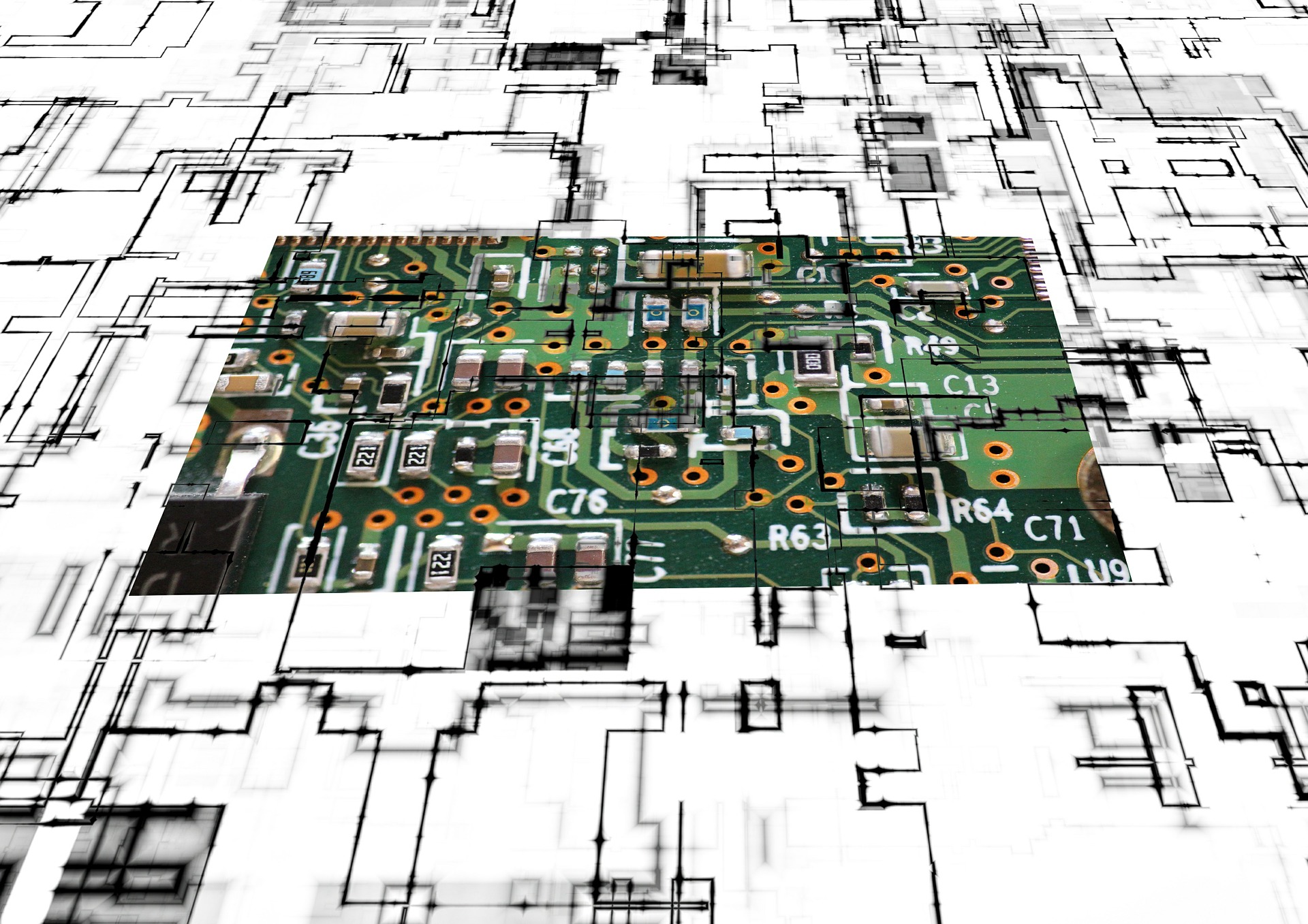

MASTER REALIZATION

Since its inception, Arel Circuiti Stampati has been involved in the creation of any type of master for printed circuits.

From the wiring diagram to the engineering of the layout, up to the creation of libraries on specific customer indications (with creation of the components list), from the compilation of the complete documentation with generation of source files and gerber files up to the generation of the 3D file of the finished board, we are able to create masters in all their aspects.

In addition, we offer services of:

Reverse-Engineering (master reconstruction from gerber file with the possibility of modifications)
Master regeneration (starting with master designs made with ribbons, from printed circuits also mounted or from masters executed with other programs.

The Arel Cuiti Stampati staff is made up of figures with different professionalism and skills, capable of managing the simultaneous creation of multiple boards and interfacing directly with customers, using the viewer.

PCB REALIZATION

Arel Circuiti Stampati main activities include the production of samples and prototypes of printed circuits. This is a service that we offer in a very short time. Because the printed circuit is the first component of an electronic board and, to meet urgency requirements, our staff is able to make the prototype in a single day.

The urgent sampling service of printed circuits proposed by Arel Circuiti Stampati satisfies the requests of an increasingly demanding clientele. The high quality standard required is guaranteed by us thanks to the production of prototypes, samples and pre-series on the same lines used for series production.

But not only that: in addition to its own production plants (which include all the PCB manufacturing phases), Arel is able to satisfy any need in terms of timeliness, quality and price thanks to the collaboration with qualified Asian partners.

In the development phase of the printed circuit, we face all the problems inherent in series production and assembly. Our goal is to help make the appropriate choices aimed at minimizing the production costs of electronic equipment for all our customers.

PCB REALIZATION

Arel Circuiti Stampati main activities include the production of samples and prototypes of printed circuits. This is a service that we offer in a very short time. Because the printed circuit is the first component of an electronic board and, to meet urgency requirements, our staff is able to make the prototype in a single day.

The urgent sampling service of printed circuits proposed by Arel Circuiti Stampati satisfies the requests of an increasingly demanding clientele. The high quality standard required is guaranteed by us thanks to the production of prototypes, samples and pre-series on the same lines used for series production.

But not only that: in addition to its own production plants (which include all the PCB manufacturing phases), Arel is able to satisfy any need in terms of timeliness, quality and price thanks to the collaboration with qualified Asian partners.

In the development phase of the printed circuit, we face all the problems inherent in series production and assembly. Our goal is to help make the appropriate choices aimed at minimizing the production costs of electronic equipment for all our customers.

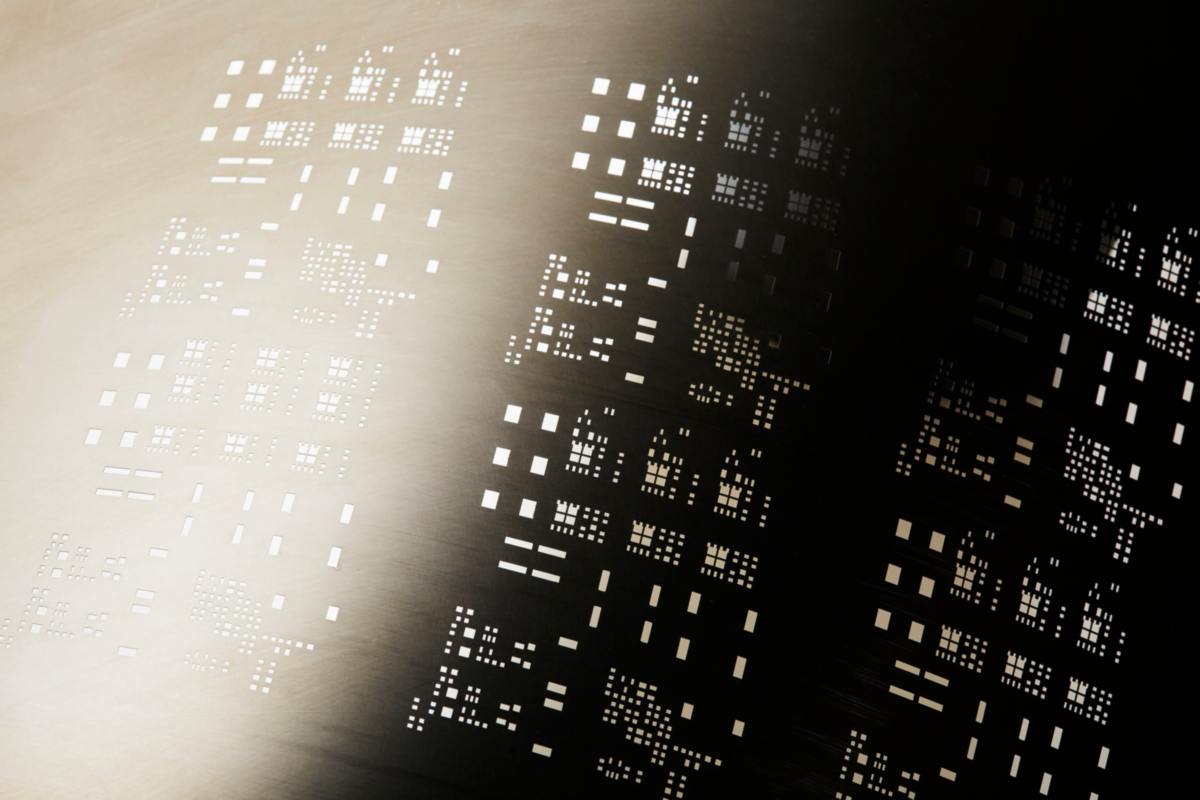

STENCIL REALIZATION

Always avant-garde from a technological point of view, Arel Circuiti Stampati offers its customers laser-cut sheets and silk-screen frames, manufactured with an internal machine of the latest generation. The incision is made with new concept fiber lasers, with an accuracy of + - 3 um, while the thicknesses with which the sheets can be made are between 80 um and 1000 um. Thanks to the use of these new lasers, in addition to having the certainty of 100% of the cutting of the openings, our delivery time has been reduced to 24/48 h.

Arel is therefore able to achieve:

SMD stencil
SMD stencil glue point
Screen printing frames

ASSEMBLY

Arel Circuiti Stampati offers a service for the production, assembly and assembly of sampling and small batch electronic cards, we provide complete management in full account or in subcontracting of the production in traditional technology (PTH) that with surface mounting (SMT) we are also able to make finished and tested products.
Production and assembly are carried out with automatic lines and verified with optical and x-ray inspection machines. Our equipment, combined with our skills, allow us to correctly assemble also components considered critical such as BGA, QFN, 01005, Package on Package.
We monitor our production process in order to comply with the agreements made, first of all deliveries, and we support our customers with effective technical assistance.

ASSEMBLY

Arel Circuiti Stampati offers a service for the production, assembly and assembly of sampling and small batch electronic cards, we provide complete management in full account or in subcontracting of the production in traditional technology (PTH) that with surface mounting (SMT) we are also able to make finished and tested products.
Production and assembly are carried out with automatic lines and verified with optical and x-ray inspection machines. Our equipment, combined with our skills, allow us to correctly assemble also components considered critical such as BGA, QFN, 01005, Package on Package.
We monitor our production process in order to comply with the agreements made, first of all deliveries, and we support our customers with effective technical assistance.
